Raylight Cutter Quick Start Guide






by

Marcus van Bavel, BSEE

DVFilm.com






A series of videos on YouTube exist to guide the user through installation and setup of Raylight Cutter. They can be found at dvfilm.com/help and click on Tutorials, or by searching YouTube for “Raylight Cutter”. Here is a direct link: youtube.com/user/dvfilmsupport



Installation



When you purchase the program, a download link is emailed to you. Download the file and double-click on it to run the installer.



Helper Apps



The installer will guide you through the installation process. Several helper programs are used with Raylight Cutter. These are all free programs available on the Internet. The installers are included with Raylight Cutter for your convenience. Some of these helper programs may not be required. The best procedure is to select all of them, then later, remove the ones that are not used, with Windows Control Panel, or on OSX by deleting the application icon from the Applications folder. Only the first one (Microsoft Visual C Runtime) is absolutely required, for Windows only. Also if you have previously installed Raylight Cutter, you can skip all of them. For a detailed explanation of the helper files and what they are used for, see dvfilm.com/cutter/helpers





Activation (Purchased Version Only)



Skip this section if you are running the demo version.



When the installer is finished, you will be prompted for your serial number, email address and activation code. If you do not know your serial number, you can request it by pressing Request Serial Number (the computer must be connected to the Internet for this step). The serial number is emailed to you. If you need your activation code, click Request Activation. The activation number will be filled in assuming the email address and serial number are correct (this also requires the computer to be online).



If your computer is off the Internet, there is another activation method that involves using your smart phone. To use that, point your phone’s web browser to dvfilm.com/mobile, click Help and then Activate Software. A full explanation of offline activation, including a video tutorial, can be found at dvfilm.com/help under “Serials and Activation”.

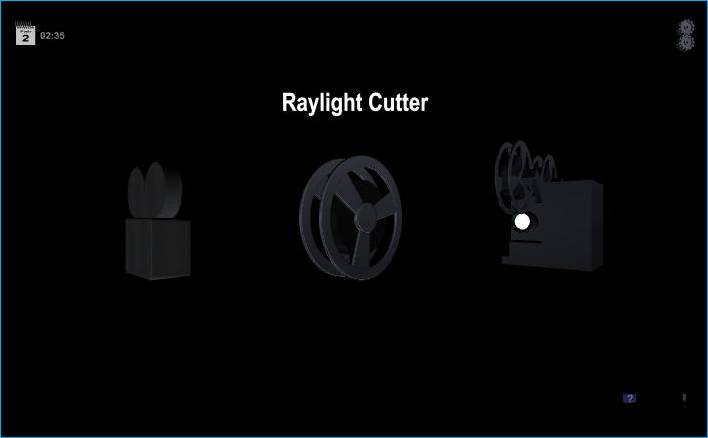

Home Screen






The home screen presents you with the three phases of film making: selecting clips (the camera icon), editing the project (the reel icon) and presentation (the projector icon).



The date and time are displayed in the upper left-hand corner.





Text Box: On the upper right-left hand corner is the gearbox settings icon. Click here to control the program settings.




HouseHelp.jpg Text Box: On the lower-left hand corner is the contextual help, which displays helpful videos or text about the functions on that particular screen.



Text Box: The recycle icon will restart the user interface.









hourGlass.jpg Text Box: The hourglass icon, if it appears in the lower left-hand corner, indicates that the application is busy.





Choose the camera icon to get started. Click on the rotating camera to open it and select file format.






Selecting Clips

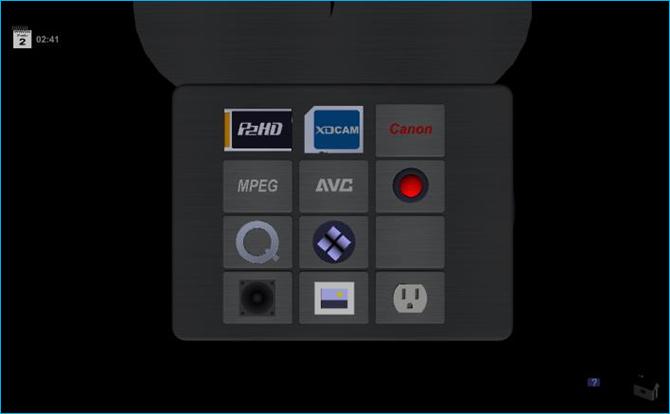

After the camera turns, choose the file format that your camera records, or any format of interest that you wish to use in your proect, by clicking on the appropriate tile.



Import File Formats



P2HD

MXF files created by Panasonic P2 cameras

XDCAM

MXF files used by Sony Cameras

Canon

MXF files recorded by Canon cameras

MPEG

Any Mpeg file (.mpg, .m2t, .mp4 etc.) recorded by many different cameras

AVC

MTS and AVC files used by several camera makers recording in the H.264 stream format

Red

R3D raw files used by Red Cameras (not in Beta release).

QuickTime

QuickTime files used by DSLR cameras, iPhone cameras, and many others

Windows Media

WMV, WM9, AVI files, etc. used on Windows platform








Import File Formats (cont)



RAW

A variety of Raw formats from electronic cinema cameras (not in Beta release).

Audio

AIFF, WAV, and MP3 files usually exported from other programs

Stills

JPG, TIFF, BMP, PNG, DPX files and other frame sequences usually exported from other programs

Plug-in

Any file format supported by DirectShow or a Raylight Cutter 3rd-party plug-in.









Raylight Cutter will then search your hard drives for clips of that format. It searches by file extension. The areas searched are:



1.         Your system drive Media folder (usually C:\Media). On OSX this is the system drive, Media folder. This folder is created by Raylight Cutter on installation and it puts a couple of sample files in a Samples subfolder. Except for this folder and the user’s home folder (including the desktop) the rest of the system drive is not searched.

2.         Any other connected hard drive, starting in the root folder. Up to 6 levels of subfolders are searched. This subfolder limit can be changed, see “Customizing Raylight Cutter”.

3.         The user’s home folder (Documents, Videos, the Desktop, etc).

4.         If you don’t want a folder searched, rename the folder with a minus sign in front of the folder name. If you have folders on the root of your system drive and want them searched, move them to C:\Media.

5.         The search can take a long time, but it is done only once for each type of file that you work with, and then Raylight Cutter remembers where they are. If you add folders of media files to your system, you can use the refresh icon to redo the search and find those folders.










Folder selection

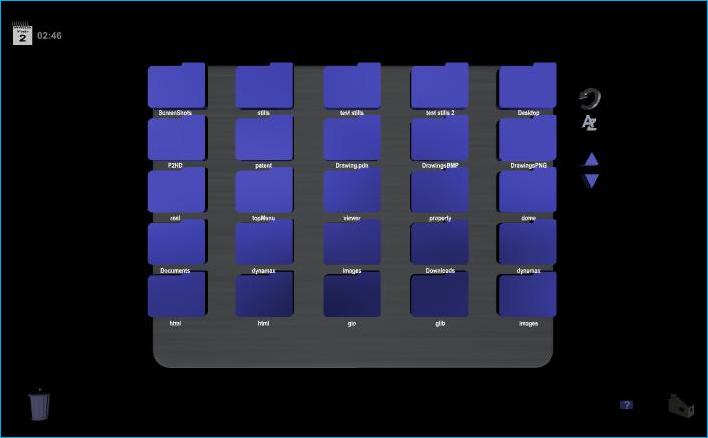

All folders containing media files of the type you selected (in this example above, still image files) are shown. If there are more folders than can fit on the screen, use the up and down arrows to flip through the folders.



Text Box: The recycle icon can be used to redo the folder search.




recycleAZ.jpg Text Box: The Z/A icon is used to change the alphabetical order of the folders





To delete a folder, drag it to the trash (feature not in Beta release). To add an empty folder, click the add folder icon (not in Beta Release).





Text Box: Click on the house icon to return to the home screen.








Click on a folder to open it.



Click on the gray tile behind the folders to push back to the format selection screen, to select a different clip format.







Clip Selection

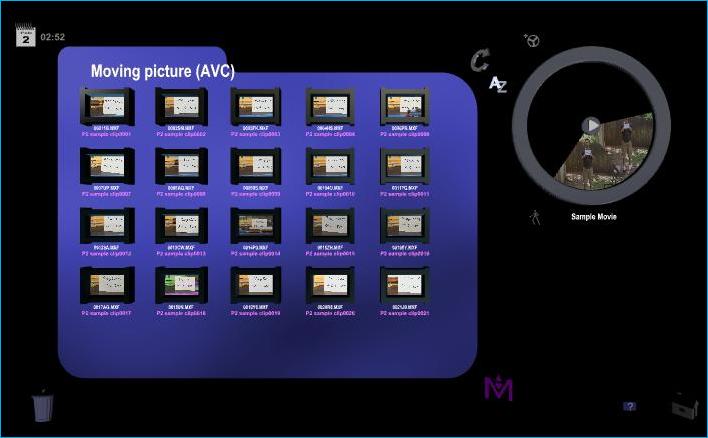

When the folder is open, all the clips of the selected format (in this case, P2 MXF files) in that folder are shown. Beneath each clip is the file name in white, and the metadata user clip name in violet. The metadata category can be changed by clicking on the metadata icon (the violet “M”) and then using the up and down arrows that will appear in violet. Clips can be alphabetized by file name or metadata. Typical metadata includes starting timecode, date, format, location, scene and take number, camera person’s name, etc.



Drag a clip to the trash to delete it.



Drag a clip into the project (the reel-shaped piechart) to add it to the project.



Drag the clip into the background (black area) to create a floating clip. The clip will remain floating there until you put it somewhere, or remove it by dragging it into the trash.



Flicking Clips



(Flicking clips is not in the Beta release). This allows you to use a gesture on the touchscreen or a gesture with the mouse, to direct the clip into the reel or into the floating clip area. Flick the clip up, right or down, to create a floating clip (anywhere but in the direction of the reel). Flick the clip in the direction of the reel to insert it at the end of the current reel. With the mouse, flicking is accomplished by dragging across the clip, or from the clip, and then releasing the mouse button somewhere beyond the clip (the exact position does not matter).



viewer.jpg Text Box: Flick a clip into the reel.





Click on a clip to select it and open the viewer.






Viewing a clip

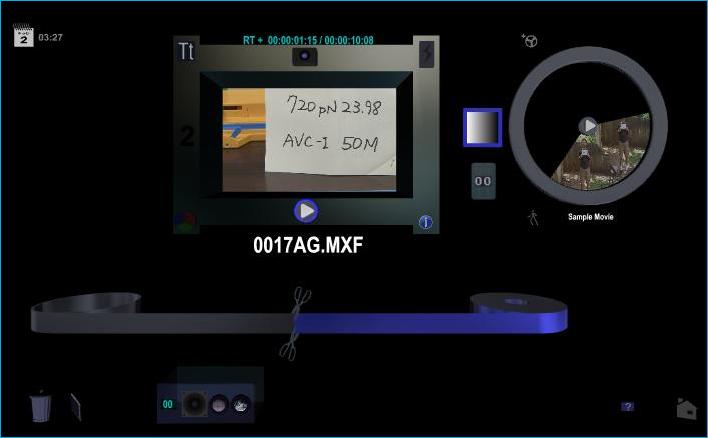

The above screen shows the clip viewer after you have clicked on a specific clip in the folder.



Changing the 3D Position of the Viewer



You can use the SHIFT key and the mouse (but it’s not necessary to click on the mouse) to move the clip viewer around on the screen, left/right and up/down. Use the CTRL key and mouse up or down to move the viewer closer or further away, or left/right. Or you can click and drag (or touch and drag) the right or left-hand side of the viewer frame to move it around (feature not in Beta release). You can do this from anywhere on the frame as long as the finger or mouse is not on one of the 6 controls on the frame.








Text Box: The play button can be clicked and dragged out to form a crank arm, to wind or rewind through the footage. Play.jpg







crank.jpg Text Box: This shows the crank arm dragged out of the playback button in order to crank through the footage.







The longer the crank arm, the finer you can position the viewer forward or backward in time. When the crank arm is short you can scan through the footage quickly.





Click the play button to play the footage, starting at the last place you left it. If you pause the playback, you can resume from there by clicking the pause button again, or the play from start button (which will appear to the left of pause) to start from the head cut.







scissors.jpg Text Box: Click on the right side of the film to go to the head cut, twice to go to the start of the roll (the start of the media).

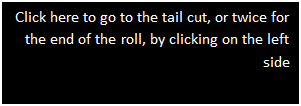

Text Box: Click here to go to the tail cut, or twice for the end of the roll, by clicking on the left side   scissors.jpg


Trimming the Clip



Text Box: A cut is made by clicking on the scissors. The lower scissors make a head cut, the upper scissors make a tail cut. scissors.jpg



In this way the clip can be trimmed before dragging it into the reel. Most editing functions (trimming, sound levels, steering, color correction, titles, adding tracks of music or adding sound effects) can be done before the clip is dragged into the project, and the changes will accompany the clip when it is copied over.



Speeding up Playback

with the Lightning Bolt



Lightning.jpg Text Box: Click the lightning bolt icon to make a low-res proxy of the clip, to speed up playback and make editing smoother.









The Lightning Bolt is recommended for all MPEG and H.264-based material, 2K, 4K, and uncompressed media, depending on the speed of your computer system, to get real-time playback of the edited reel.



While the proxy is being made, the lightning bolt will slowly fill up from bottom to top. When it flashed and turns all white, the proxy is finished. You can do other things while the proxy is being made. If you minimize or iconify the Raylight Cutter window, the proxy is built faster. The title bar of the window also shows the progress of making the proxy, in frames made divided by frames total. You can also see the progress info, if the window is minimized, by hovering the mouse over the window icon. If you click on the lightning bolt while a proxy is being made, it will halt the proxy-making function. If you click again, or after the proxy is done, it will delete the proxy. Proxies are made from the start of the media to the end. You can also make a proxy just from the head to tail clip (feature not in Beta Release) by dragging from the selected area (blue area) of the clip to the lightning bolt icon.



The low-res proxy will not affect the quality of your finished movie, it just makes editing faster and easier. To control the quality and resolution of the proxy, see “Customizing Raylight Cutter” page xxx.



Snapshot or Thumbnail



Text Box: You can change the thumbnail of the clip by cranking the viewer to a typical frame of the clip and then click on the still camera icon at the top of the frame.






The still image of the clip is visible in the miniature clip view, and in the reel, if the clip is in the reel.



Add Title



Rembrandt.jpg Text Box: You can add a title to the clip by dragging the title icon to the screen. Click on the title icon to change the color and position of the title.







Press the return key to go to the second line. Click outside the viewer to stop adding text to the title.  It’s possible to control the position, size, color, transparency, scrolling, and font of the title. Click the title icon (“Tt”) to open the title controls. You can also create a title or any superimposed image in an external paint or photo-retouching program. When you drag a clip to the project, the title will go with it. If you need multiple titles over one shot, this is usually done with a subreel (of superimposed clips). See Titles  for more detail.



Color correction, Visual Effects,

and Re-Framing

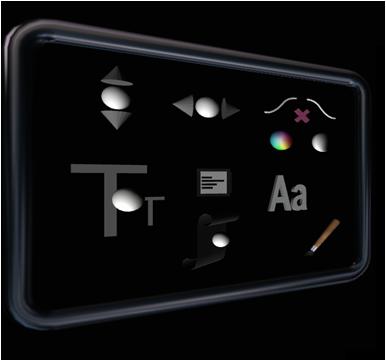

Click on the Rembrandt icon (the red/green/blue-colored circle) to color correct the clip. The Rembrandt system uses the keyboard for most functions. For example the numeric keypad 8 key raises gamma (increases brightness) and the numeric key 2 lowers the gamma. Rembrandt can be used to add green-screen matte effects, create film looks with grain and gate weave, change selected colors in the frame, reposition the frame, stabilize motion in the frame, and has many other features. All settings can be “key-framed” (animated) with smooth transitions. Rembrandt also works with the Griffin PowerMateTM controller and can be entirely controlled from the PowerMateTM. See the Rembrandt section for details.





Audio Editing

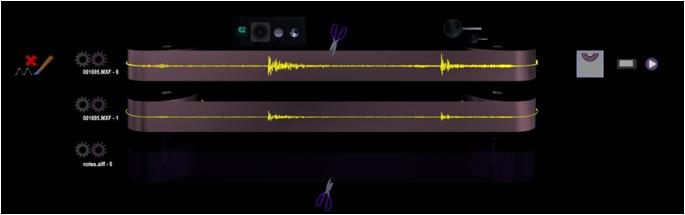

audioBox.jpg Text Box: Click the audio box icon to show the soundtracks.




Text Box: Click the violet-handled scissors to make cuts to the head or tail of the audio track.  Cuts will be made to all the tracks, or to the selected track, or to all unmuted tracks.







Select a track by clicking on it. Click on the black area to unselect all tracks.

Click on the gears to the left of the track to unlock a track from the picture track. Click the gears again to lock them. When a track is unlocked, it will remain in place while the picture track is moved forward or backward.



Syncing a track



This is how you sync an audio track to the picture track (not needed if the audio was recorded with the video).

With the track locked, use the crank arm or drag along the track to position the track to a loud or distinct sound. Unlock the track. Crank or drag the picture track to the where the sound is supposed to occur. Then lock the track again.



Controlling Audio Cut Ramps



To control the ramp length of an audio cut (the time over which the sound is blended in at the head and tail cuts), after you make the cut with the scissors, drag a crank arm out of the speaker box and use it to adjust the ramp length  (not working in Beta release, all cuts are ramped in 0.1 sec).






Changing audio levels



A volume change can be made to the entire track by dragging a crank arm out of the global audio icon (looks like the Earth) and turning it. The audio waveform turns cold (more blue) for lower volume and hot (yellow) for higher volume. Peaks will be highlighted in red if the volume is too hot. When playing back a track, the audio peak meters will highlight red and stay red if the track is over-modulated.  Crank the track to the loud parts and reduce the volume to avoid distortion. Cutter also has a feature which will automatically limit or soft-limit the volume before the tracks starts peaking (not in Beta release).

Changing volume over a small patch

Move the track so the sound you want to change is centered.  A crank arm can be dragged out of the local volume control (crosshair icon) to change a small part of the track. Turn the arm to raise or lower the volume, drag the crank arm out to enlarge the region around the center of the track. The two-digit counter shows how many places in the track you have done this. Drag black into the audio box to clear any volume changes.



Audio Surround Steering



Text Box: Select the track and click on the steering cube to change the steering.




Click on a corner of the cube to direct the sound to a corner. Click the top, bottom or side edges to center it front, back or side. Click the middle to direct the sound to the subwoofer or to mute it.

steering.jpg Text Box: For more precise control click on the screening room icon to the right of the cube.



The screening room will open and allow you to fine adjust the steering between the speakers.

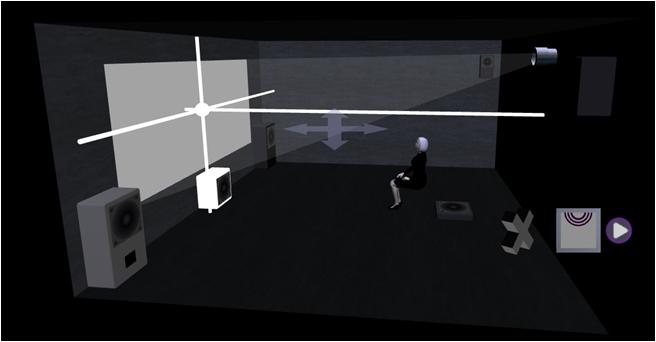

The Screening Room

Click and drag along the walls or the floor of the room to move the audio location. Click and drag the arrows to re-orient the room. Use the play button to preview the track (only the track you selected will play). Click the “X” to close the steering room.



Audio Effects

Audio Effects built in to Cutter include reverb, equalization, limiting (compression), pitch change, and noise reduction. The audio effect is selected by clicking on the speaker icon in the audio box (this feature is not provided in the Beta Release).

External Audio Editing



Text Box: Audio tracks can be edited with an external audio editor by clicking the paintbrush icon to the left of the selected track. Click on the red “X” to delete the track. audioPaint.jpg



If you click the paintbrush a copy of the track will be made and then opened with the default audio editor. If Audacity is the default editor, after making changes the track must be exported back to the copy. The file is located in the Cutter subfolder with the original source clip.

Other editing programs may be used such as Goldwave, Sound ForgeTM, ProToolsTM, etc.  See “Customizing Raylight Cutter.”



Key-frame Volume changes or steering

The Rembrandt controls can be used to key-frame any volume, effect, or steering changes. See the Rembrandt section for more details. (In the Beta release, only volume changes can be key-framed).



Adding a Subreel



Text Box: Drag from the subreel icon (reel with a plus sign) to the reel to insert a subreel between two shots or in the middle of one shot. subReel.jpg







If a subreel is in the middle of a shot, the video is superimposed over that shot (and any others in the reel that might follow). If the subreel is inserted, or dragged into slug, the reel is inserted as a scene within the reel. Subreels can be nested to create a hierarchy of reels, acts, groups of scenes, or scenes within the movie. You can also move a subreel or make a copy of it by dragging the subreel to the black area (the cutting room floor) to create a floating reel. Floating reels can then be moved anywhere within the reel or subreels. They are also automatically saved in the library.

Naming a Reel or SubReel

A reel (or subreel) can be named by clicking on the name tag under the reel and entering a name. Press enter or click outside the nametag to set it. Press the escape key to cancel any change.





Adding Slug or Blank Footage



Drag from black to add slug to a reel. Slug is black video that can have titles or added audio tracks. The Rembrandt controls can be used to create colored or semi-transparent slug. The head and tail cuts can be used to change the length of the slug.



Using the Library and Navigating through a Project



filmCan.jpg Text Box: Go to the main reel screen and click on the library icon (spinning film can in upper right-hand corner) to open the library and select a different project.



A new, empty project can be started by dragging the edge of the reel to the trash can. The existing project will be saved before the reel is cleared out. Reels are saved automatically as you edit them, so there is no need to save a reel. However you can force Cutter to save a reel by clicking the hard drive icon in the lower right corner.

Undo Changes with Walkback



Text Box: Any change to a project can be undone by clicking the walkback icon. walkback.jpg



If you made a series of mistakes and want to backtrack the project to an earlier date, you can also copy the backup from the undo folder in the Documents/RaylightCutter/FilmVault folder (or on the Mac, the /Users/Shared/RaylightCutter/FilmVault folder) to the FilmVault folder. The backup files are named by project, date, and time of the backup.

Packaging a Project



A project can be packaged by clicking on the package icon in the library screen. Select the folder, and then Cutter will copy the project file and the associated media into to that folder. The references in the project file are relative to the root folder of the package. So the folder can then be moved or copied to any location, or onto another computer, or to a backup drive. (This feature is not working in the Beta release).

Adding and Editing Transitions



A video transition can be selected by clicking on the border between two shots in the reel. The border will be highlighted in violet, and the transition cube will rotate to the appropriate transition. If the cube remains grey, the default transition (a hard cut, by default) is used.

Text Box: To change the transition, click on the cube or the counter icon below it.




transition.jpg Text Box: The counter controls the length of the transition.



You can clink at the top of bottom edge of the digits to change the length, or at the top or bottom edge of the counter to change the length by 4 frames up or down. You can also drag a crank handle off the counter and set an arbitrary length. The main 4 built-in transitions are dissolve, flash frame, wipe, and clock wipe. You can also select one of 100 additional transitions by dragging a crank handle off of the cube (feature not working in Beta release).



Text Box: For a flash frame, the color of the flash can be changed by dragging a crank handle from the colored ball icon. transition.jpg



The default flash frame color is white.

For a wipe, the angle and width of the wipe can be changed by dragging a crank handle from the half black/half white ball icon. (Beta release can change the angle only).

To clear the transition, drag black into it (or into the counter) and it will be set to a hard cut. To clear the transition and set it to the default transition, click the trash can icon.

To set both the beginning and end transition for a shot, click on the middle of the shot

Text Box: The transition cube will be highlighted blue in this case. transition.jpg

To set both the beginning and end transition of the reel, click on the black pie-shaped space between the last shot and the first shot.



Text Box: To change the default transition, click on the black background, and the transition box will turn gray.




You can then click the cube and the counter to set the default transition.



Superimposed Music or Sound Effects



Details to be written. Superimposed music or sound effect tracks can be made by dragging audio tracks from a folder or audio files or from the clip viewer to a clip in the reel. The sync gear controls and scissors can be used to synchronize and trim the sound effects or music.



The Main Editing Screen





To open the main editing screen, click on the reel in the home screen. Shots and transitions in the reel can be edited. To do more detailed editing, click on the play button in the center of the reel, and and it will transition to the synchronizer view (see below).



The Synchronizer




In the synchronizer, clicking on a shot in the reel will open the shot in the clip viewer. Clicking on the audio box will also show the soundtracks. The viewer will also show any sound tracks from other clips in the reel that overlap this shot. Those reference tracks will be shown with darker, transparent color.

If the clip is in a superimposed subreel, scrubbing the picture track with the crank arm or by dragging the mouse along the film strip will show the selected clip superimposed over the parent clip. Hoever playing the clip by using the play button on the viewer will show only the clip.

To change the opacity (or transparency) of a superimposed clip, turn on the Rembrandt control and set the clip level with the “L” key.

If you have slug in the superimposed reel, the slug can be made completely transparent by setting the level to -1.0.

50% transparency is equivalent to a level of -.5.

Synchronizing the superimposed track is accomplished by using the blue gear box controls to the left of the picture roll. These are also called the slip gears. To use them, first scrub or crank the selected clip to the sync point. Release the slip gear. Then use the crank arm to position the underlying layer (from the parent clip) to the sync point of the parent clip. Then lock the tracks together. Using the blue slip gears will ensure that the audio tracks will remain locked to the selected clip when it is slipped.

(Example to illustrate this function to be written).





Editing Multi-Camera Shoots



Drag a subreel into the first shot (camera “A”) of a main reel. Open the subreel by clicking on it. Drag a second shot (Camera “B”) into the subreel. The A/B control in the synchronizer screen can then be used to switch back and forth between A and B cameras, either during live playback, or after scrubbing to an edit point. “C” camera clips can be added as a subreel to the “Camera B” subreel, etc. When you click on the “A/B” control, the default transition is used to transition between the shots. The edit point becomes the middle of the transition. Transitions can also be changed after the cut has been made (see Editing Transitions). More details to be added.




Project Settings



Text Box: The important program settings can be changed by clicking on the gear icon in the top right corner of the home screen:





These settings are default frame size, frame rate, etc. for exporting movies and also affect conversions if you have a mix of formats in your project. You can skip this step and change the settings later if you desire. They’re not important until you export video, or start to work with sound mixing. See below.

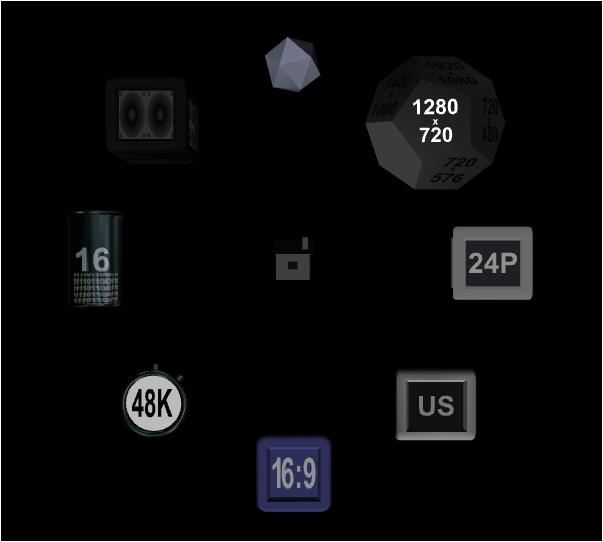

The Settings Screen





The settings are:



Frame size – set the default frame size when exporting. Click on the top half of the polyhedron to increase the frame size, the bottom half to decrease it.



Frame rate – set the project frame rate (the default frame rate when playing or exporting)



Frame system – select US or EU (European) frame rate system. US rates are divided by 1.001 for compatibility with NTSC and digital video systems (for example 29.97 instead of 30 frames/sec).  EU rates are exactly as shown.



Frame Aspect Ratio – select 16:9 or 4:3



Audio Rate – select 48 KHz, 44.1 KHz or 96 KHz as the default export rate



Audio Bits – select 16 or 24 bits/sample as the default export format. If a format will only work with 16 bits/sample this setting is ignored.



Audio Channels – select no audio (no speakers), mono audio (one speaker), stereo (2 speakers), or surround (6 speakers)



Graphics mode – click the icosahedron to change the graphics mode to non-textured or wireframe







How to Organize Large Projects





To be written








Color Correction with Rembrandt



Text Box: Click on the Rembrandt icon (the red/green/blue-colored circle) to color correct the clip:

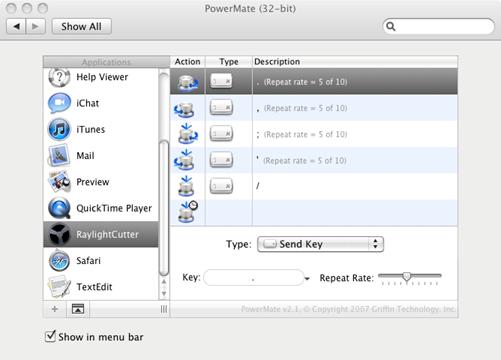

The Rembrandt system uses the keyboard and (optional) PowerMateTM for most functions.





Numeric keypad



These functions always operate over the entire frame:

7

Raise Low Tones

8

Raise Mid Tones

9

Raise High Tones

-

Lower Saturation

4

Reset Low Tones

5

Reset Mid Tones

6

Reset High Tones

+

Raise Saturation

1

Lower Low Tones

2

Lower Mid Tones

3

Lower High Tones









Low Tones, Mid Tones, and High Tones are also known in video-speak as Black Level, Gamma, and White Level, respectively. The change in tones can be applied to all colors, or to one of three color channels (see below).



Function keys



The function keys control which color channel is being controlled by the numeric keypad.



F1 – all colors

F2 – Red

F3 – Blue

F4 – Green

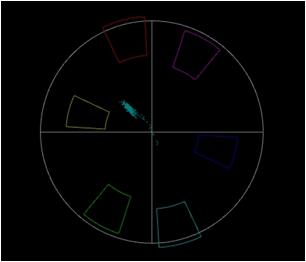

The histogram is drawn in white, red, green or blue depending on the mode (see below).



Rembrandt.jpg Text Box: Press the gamma-up key (8 on the numeric keypad) to put Rembrandt into the gamma (mid-tones) mode. The PowerMate can then be used to vary the gamma or you can use the 8, 5 and the 2 keys.



Text Box: Press the F2 key to alter the red channel only. The mode indicators turn red. Using the 2,5,8 keys or the PowerMate now affects only the red channel. Rembrandt.jpg







To clear all color corrections for the current keyframe, press the “E” key (erase). To clear all the keyframes (and corrections) from a clip, drag from black into the Rembrandt color wheel icon or click on the color wheel icon to turn Rembrandt off.



Special keys:



P – Pick color – click on the color in the frame to select it, use P or p  to control the range of colors selected. For negative pick values, the picked area is reversed (selected color is excluded from change).



The following controls operate only on the picked region (or the entire frame if no color is picked). Use the Shift key to raise the setting, no shift key to lower the setting. Use the control key to accelerate the amount that you are adjusting



B – brightness

C – contrast

L – level (or opacity)



N – noise (add or remove grain or noise to the image)



H - hue

S -  saturation

F – focus (blur or sharpen)



A green screen effect is accomplished by adding a subreel to the background footage, putting the foreground shot into a superimposed subreel, picking the green color of the screen, setting the opacity of the screen to zero (level of -1.0). Sometimes you must also use the green saturation control (“-“ saturation key on the numeric keypad when in green mode) to de-saturate the green to make the green fringe around the foreground player less noticeable. The analogous procedure can be used for blue screen composites. Some tips on effective green screen work: 1) provide lots of separation between the players and the green screen 2) use a slightly magenta backlight on the players. 3) avoid green clothing.



Repositioning





These controls operate on the entire frame:



                T – tilt

                Z – zoom

                Arrow keys – reposition left/right, up/down

                J – jitter (add random motion) or stabilize image (stabilizer not in Beta release)






Scrubbing



                Page Up/Page Down – next frame, previous frame

                Control Page Up, Control Page Down – next key-frame

Shift Page Up, Shift Page Down – next 10 frames, previous 10 frames





E – erase (or delete) corrections. Press once to delete color correction, twice to delete any reframing including zoom, tilt, crop, reposition



A   aspect (squeeze or stretch the image)



Insert Key – insert a keyframe

Delete Key – delete a keyframe

M Key – move- move the nearest keyframe to this frame (not in Beta release)



D – dissolve (dissolve from this keyframe to the next). Use D again to remove the dissolve.



V – view – cycle the video scope view from histogram to vector scope to RGB parade, see below:







Histogram






The histogram is a plot of how many pixels are at a given brightness. A correctly exposed scene is roughly bell-shaped with fewer pixels on the left end (dark pixels) and on the right (bright pixels). A dark scene will be skewed to the left. A bright or washed-out scene skewed to the right.






Vector Scope






The vector scope shows a plot of color phase and amplitude and is useful mainly to broadcast professionals. The six colored pie-shaped areas are where the chromatic values should be when displaying standard SMPTE color bars. To adjust the chromaticity you can use the Rembrandt Hue (H) and Saturation (S) controls.








RGB Parade






The RGB parade is a plot of amplitude for each of the red, green and blue channels. The scene in this example has a lot of reddish hues so the red channel is higher than green or blue. A neutral scene has the levels all about the same.







Volume Controls



Rembrandt can be used to key-frame audio track volume. Volume will be ramped with a smooth S-curve when a dissolve (“D” key-frame) occurs between two key-frames with different volume levels.



Minus Key – lower volume on selected track (or all tracks if none selected)

Plus Key – raise volume





Cropping



[ (square bracket key) and then an arrow key – Crop from left or top

] (square bracket key) and then an arrow key – Crop from right or bottom



Linking Shots



R – Reference shot, mark this shot as a reference, usually the first of a series of cuts from the same camera angle or setup



Q – Quick Link – link this key-frame to the last designated reference shot. Henceforth changes to that reference shot will affect all shots that are linked to it.



Comparing shots



Snapshots – Use these function keys to make a snapshot, use the shift key to view the snapshot. This is used to compare color correction between two shots.



F5 – snapshot one           F6 – two               F7 – three           F8 - four





Miscellaneous





Esc key – hold down to view the frame without color correction

                Hold down Esc key and press a special key to reset that effect



~ (tilde key) – cancel any special mode and clear the state of the PowerMate



Superimposed (multi-camera) editing



These controls are used to control a superimposed shot:



1 – One key – Make the shot fully transparent (if it is superimposed with another shot) and add a key-frame



2 – Two key – Make the shot fully opaque (Level = 1.0) and add a key-frame



(note: the A/B control can also be used to do multi-camera editing,  and automatically inserts a default transition), see section on A/B editing.



Setting Up the PowerMate



The PowerMate is a USB scrolling knob that can be used with Raylight Cutter to control many of the color functions in Rembrandt and the clip viewer in general.

PowerMate Setup – Windows

The regular device drivers provided by Griffin for the PowerMate should be installed and no further setup is required. Raylight Cutter should be restarted after the PowerMate is connected.

PowerMate Setup – Mac

After installing the PowerMate software and connecting the device, use the System Preferences pane, PowerMate dialog, to add the Raylight Cutter application (click the “+” button to add it) and set the following preferences for Raylight Cutter:

                Right turn – send key . ” (period key below the “L” key)

Left turn – send key , ” (comma key below the “L” key).

Down and Right – send ” (single quote key above “ / “ key)

Down and Left – send ; ” (semicolon key above “ / “ key)

Down Click – send / “ (forward slash to the right of the “ . “ key)

A sensitivity setting (how far the knob is turned to generate one virtual keystroke) of 5/10 should be adequate for most systems.

The screen grab below shows the settings:




Using the PowerMate with Color Correction (Windows/Mac)

The keyboard is used to set the mode for Rembrandt using the Rembrandt Keys (see previous guide on the Rembrandt keys) and then the PowerMate can be used to continuously vary the setting. Press and hold the PowerMate button down to accelerate changes. The control key on the keyboard can also be held down to accelerate changes even more.

The PowerMate can also be used to change the mode. Clicking the PowerMate button (pressing down and quickly releasing the PowerMate knob) changes the mode. (Note in future releases the PowerMate can also be turned to change the mode while holding down the shift key, this feature not provided in Beta Release).


 Titles




Title Control







Clicking the title icon will open the title control dialog (above). This allows you to control the appearance of the title. Most of the controls work by dragging a crank arm out of the appropriate control:



Text Box: Vertical position is controlled by dragging a crank arm out of this control.




Text Box: Horizontal position is adjusted with this control titleControls.jpg



Text Box: Title size is controlled here titleControls.jpg



Text Box: Click here to change the justification of the title: Left, Right, or Center titleControls.jpg



Text Box: This is used to adjust the scrolling speed in pixels per frame. titleControls.jpg



Text Box: Click here to change the font type titleControls.jpg

Text Box: Click the curved shapes to set the fade-in and fade-out of the title. Click the “X” to remove the title.




Text Box: The left crank point is used to set color and saturation of the title. The right crank point is used to set the brightness and opacity.






Text Box: Click the paintbrush to run an external paint program for more elaborate titles or graphics. titleControls.jpg





When the paintbrush is clicked, the titling program Paint.NET (or GIMP for Mac)  is opened with a blank .png file set to the frame size of the project settings. After creating your overlay graphic, save the .png file and Raylight Cutter will superimpose it over the selected shot using the transparency channel of the .png file. The fade-in and fade out controls may be used to fade the graphic in and out.






Exporting and Preparing your Project

for Presentation



                                to be written



DVD and BluRay

DCP (Digital Cinema)

Streaming

Image File Sequences

Audio Files

Archive Formats
